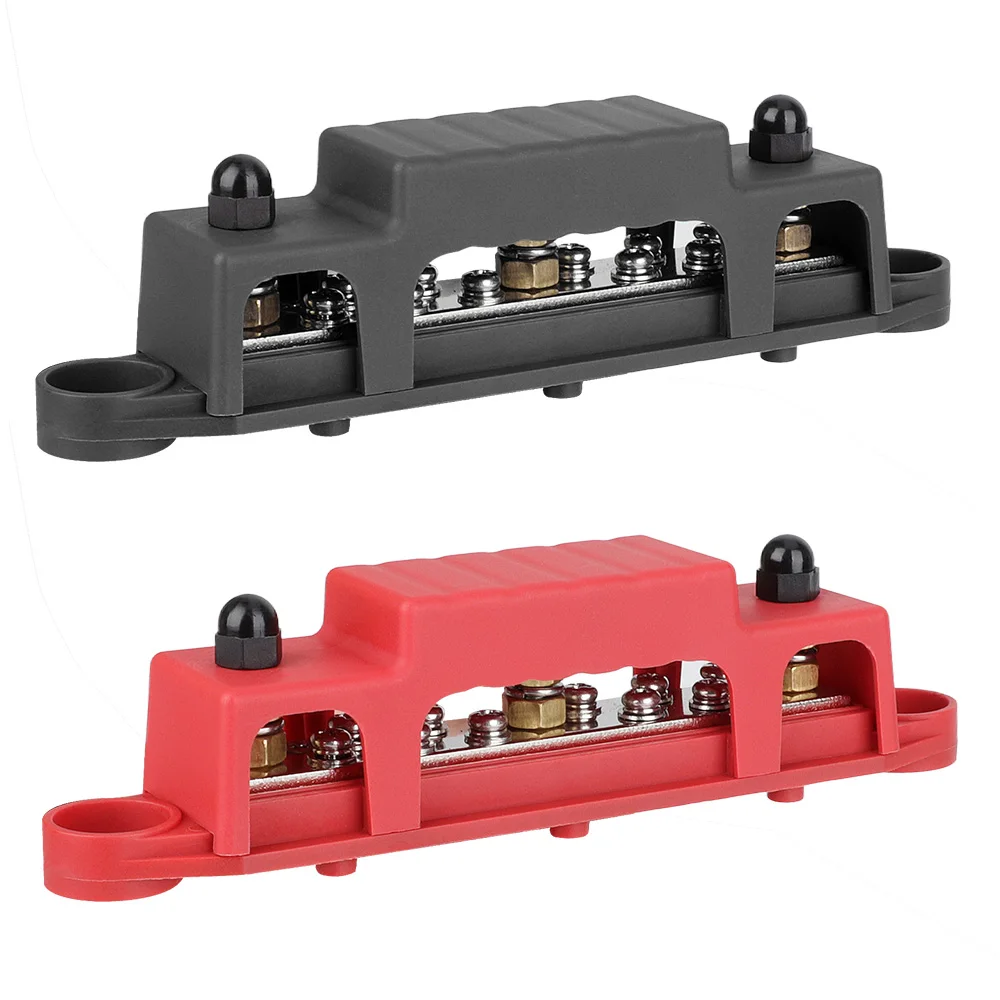

Bus Pole - 3x1/4; Post, 10x#8 Screw Terminal Power Distribution Module

Specification:

• Maximum voltage: 48VDC.

• Maximum continuous current: 150ADC.

• Maximum Intermittent: 20A per connection (less than 1 minute).

Colour

• Black

• Black+Red

• Red



Material:

• nylon PA66 flame retardant + stainless steel + copper + PVC.

uses:

• Universal power distribution block which is suitable for your boat, car or caravan etc.

• Installation instructions: directly replace the old or damaged, easy to install.

Installation role:

• 10 stainless steel #8 terminal screws, 3*1/4; (about 8.9 cm) studs.

• The housing is attached to the two outer studs using nylon nuts to prevent accidental shorting.

• Nickel-plated brass contact plates offer low resistance, maximum conductivity and protection against corrosion.

• Mounting the power distribution block provides a neat and clean surface.

• The housing and base are made of sturdy ABS plastic, which provides excellent strength and durability even in harsh environments.

Package Contents:

1. 1*black power distribution block+1*red power distribution block, 100% new and high quality.

2. 1*Black power distribution block, 100% new high quality.

3. 1* red power distribution block, 100% new and high quality.

After-sales instructions:

• All dimensions are measured by hand and may vary slightly.

• Due to differences in different monitors, the pictures may not reflect the actual color of the item.
